The official freak inserts need no introduction. They have been at the pinnacle of the barrel world for years, allowing users to custom tailor their barrels to their paintball sizes. In a collaboration between Infamous and GOG we have developed a full stainless steel XL insert kit with black nitride treatment!
Infamous® edition Freak® inserts are superior to standard Stainless Steel inserts due to the case-hardening process used to increase the inserts wear resistance, corrosion resistance and lubricity. Unlike anodizing or plating, the nitride process does not effect tolerances or weight of the insert and will never flake or peal.
The process used on the Infamous® inserts is a nitrocarburizing case hardening, known as quench polish quench nitriding, or by the brand names of QPQ®, Tufftride®, Tenifer® or Melonite®.
The surface properties of this treatment increases surface hardness by as much 300% over the base stainless material. Additionally the stainless base material takes on its characteristic black color.
Due to the nature of QPQ nitriding, there will be slight variance in the lasers ability to penetrate & bleach the color of the iron nitride surface. Lasering does not remove or reduce the surface treatment, it simply alters the color of the oxide itself.
The variance in color is not a result of layer thickness, or laser power/function.
The variance in color occurs due to the alignment of the iron particles in the material surface. Particles in the surface oriented away from the laser source will be less bleached of color than other particles that are parallel to the laser source.
The resulting variance will yield a surface color varying from a silver to a gold hue, and is to be expected when lasering a material with this hardness & chemical composition.
What is black nitride?
Blacknitride+™, or Ferritic Nitrocarburizing, is the thermochemical that simultaneously diffuses nitrogen and carbon into the surface of ferrous metals. During the process, a two-part surface layer is formed, an outer iron nitride layer with a nitrogen diffusion layer below it. Nitrogen and carbon are absorbed by and diffused into the surface of the metal. Reproducible and uniform layers with a predetermined thickness will be formed on all areas of the metal. This process results in markedly improved surface properties on ferrous metal parts while maintaining dimensional and shape stability.
Why is it better?
- Increased wear resistance
- Improved fatigue strength
- Better corrosion resistance
- Improved lubricity
- Enhanced cosmetic appeal
Whats included with the kit?

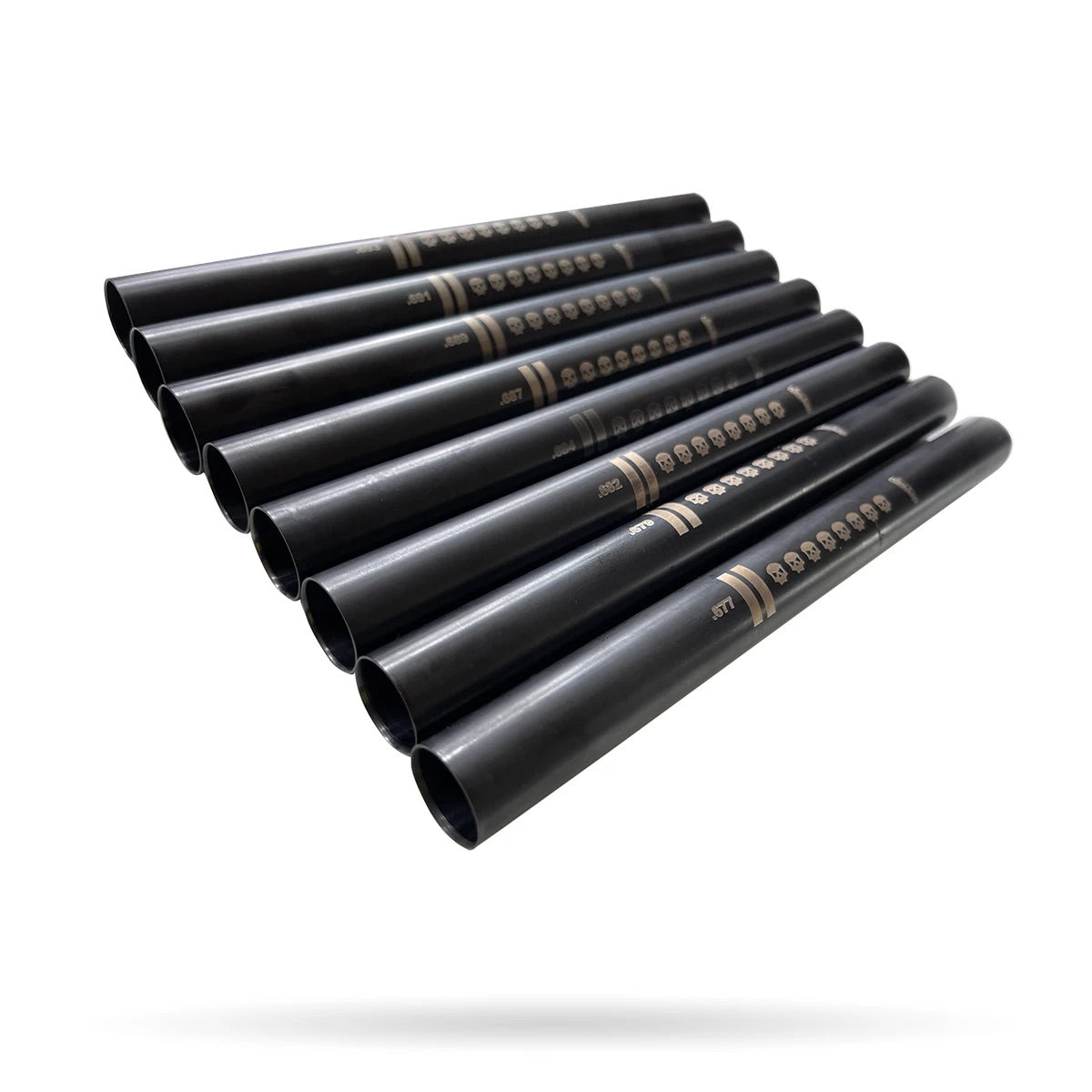

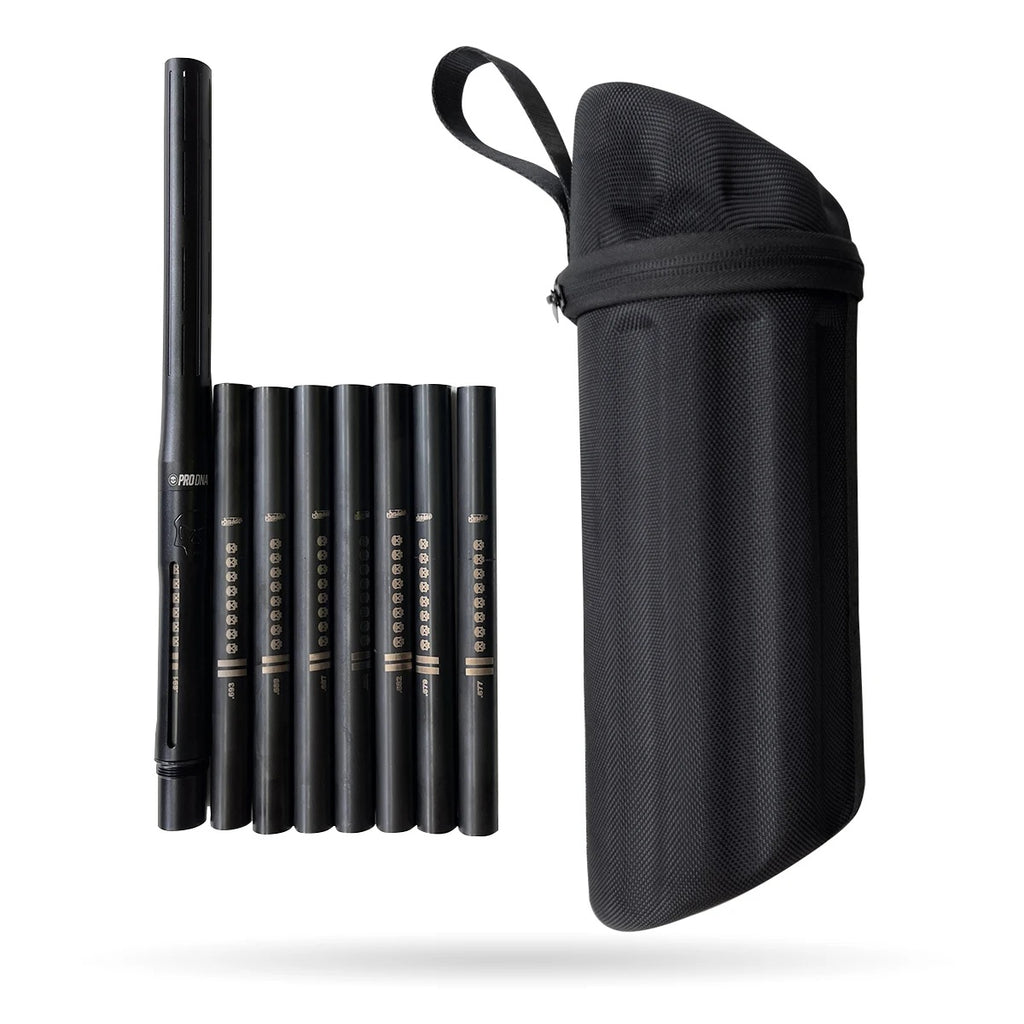

- Contains 8 freak expert honed stainless steel black nitride XL barrel inserts
- FXL Back and Tip - Autococker Threaded

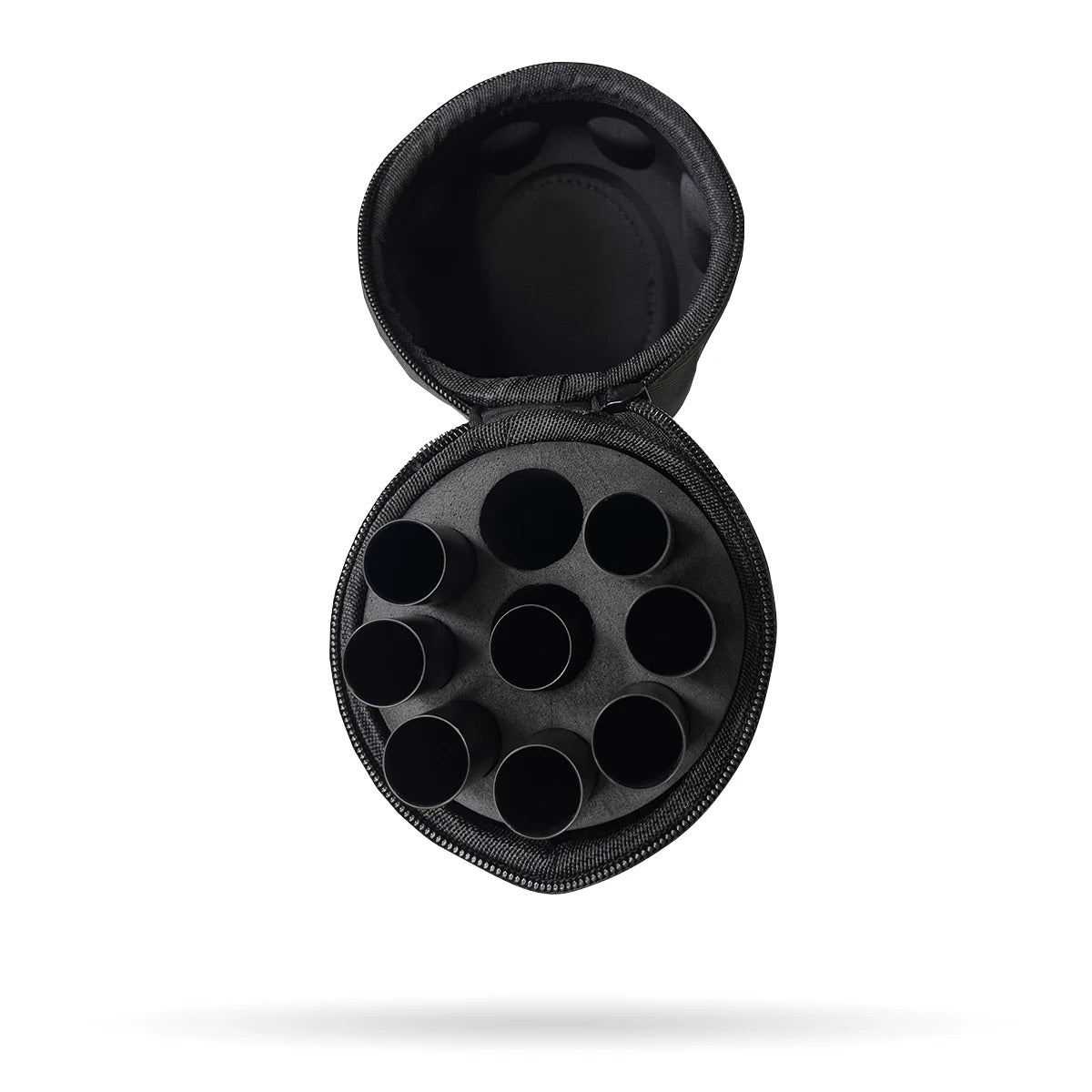

- New style Freak protective carrying case keeps your inserts together and organized
- Bore sizes: .677, .679, .682, .684, .687, .689, .691, and .693.
