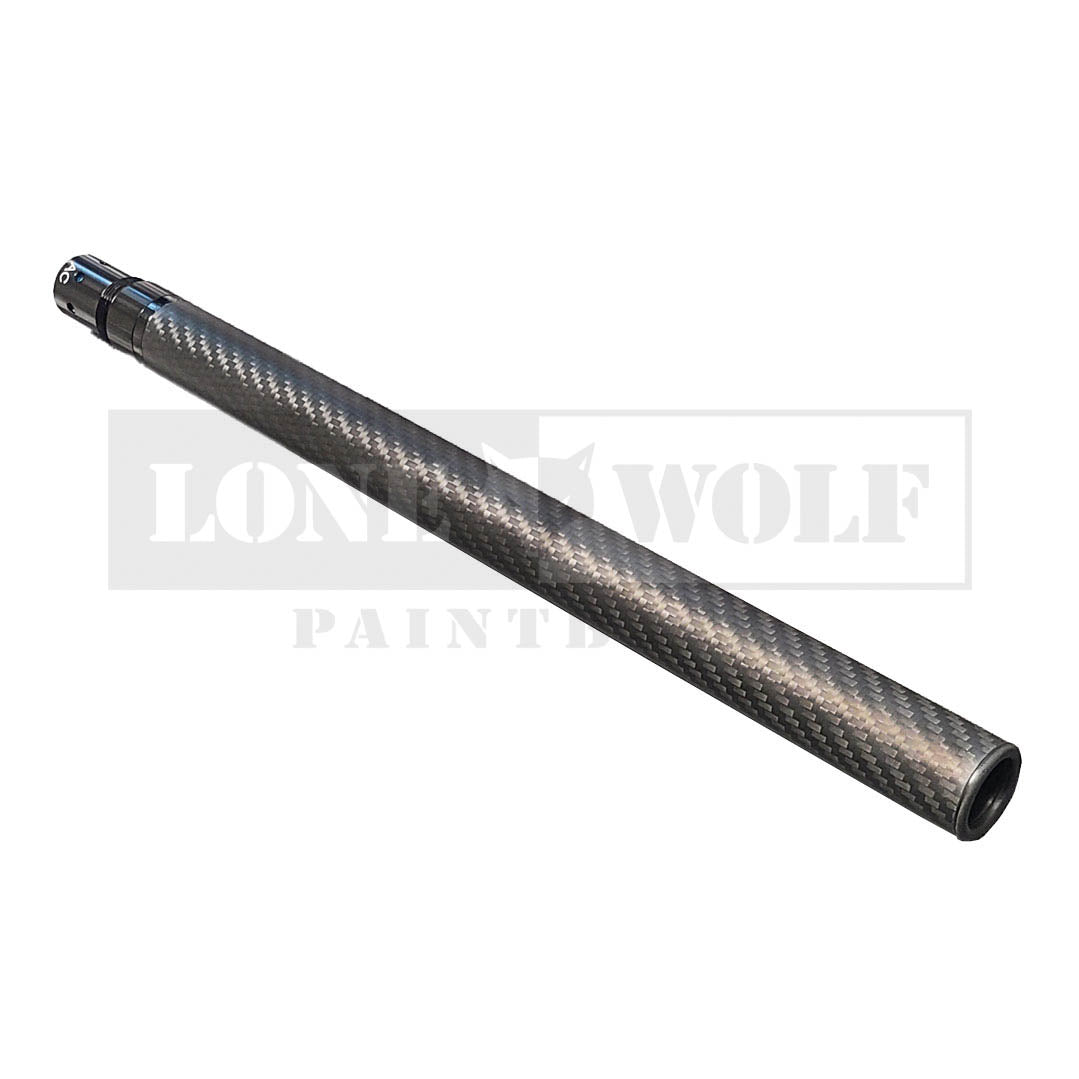

Deadlywind MOAB X8 Carbon Fiber Barrel


Make sure to select the correct barrel threads for your marker when choosing the Barrel Adapter on the drop down menu!

The MOAB - Mother Of All Barrels - is the latest revolutionary barrel from Deadlywind. It is nothing like any other barrel before and has a patent pending dual-layer barrel design. The MOAB utilizes a clean monolithic ultra-lightweight carbon fiber outer sleeve which houses, protects, and isolates the internal barrel components.

The MOAB uses a unique internally ported front sleeve available in multiple bore sizes (not included) to perfectly pair with the rear control bore and can use either PWR or Freak XL inserts.


  • Field strippable for full cleaning
  • Can be used with the widest range of guns thanks to it taking advantage of the existing Deadlywind X-series threaded backs (AC only for PWR inserts).
  • Cleared by the BATFE for sales and use on all paintball guns
  • Not susceptible to external port-clogging elements such as precipitation or bunker paint
  • Available at 14” (14.5” for PWR) and weighs 75 grams without an insert (PWR/XL inserts add 20-25 grams)
  • Vetted by all levels of paintball players, the BATFE, and USPTO

 Barrel Composition:

  • A Carbon Fiber outer sleeve with our X-series compatible LEFT handed universal threads
  • Your option of insert type (control bore inset not included) and gun threads to attach to the universal threads (AC threads are only available with PWR inserts)
  • Your option of bore(s) on the ported front internal sleeve (0.685, 0.690, 0.695)
  • A unique field-strippable front nose clip

Barrel Notes:

  • You MUST use a PWR or a Freak XL insert with this barrel
  • PWR configuration is available only in Autococker Threads
  • Freak XL configuration is available for many different gun threads
  • Gun threads are set using the existing Deadlywind X-series threaded backs (same as FiburX and FiburX8).
  • Ported internal front sleeves should ideally be around 0.005" larger than the control (PWR or Freak XL) bore
